Diamond Drums for Planing

5 references across two diameters, Ø90 with 165mm width and Ø65 with 90mm width, for planing renders, resins, bituminous materials and glue residue.
5 models
Sept Tools' diamond drum range covers 5 references in two diameters: Ø90 with a 165mm working width, and Ø65 with a 90mm working width, They remove material by lateral rotation, stripping renders, resins, bituminous materials and glue residue in a single pass. Ø90 drums mount on the Castor brushless planer and on the Ceiling Planer, while Ø65 drums mount on the Ecureuil brushless planer, matching drum size to each machine's working width.

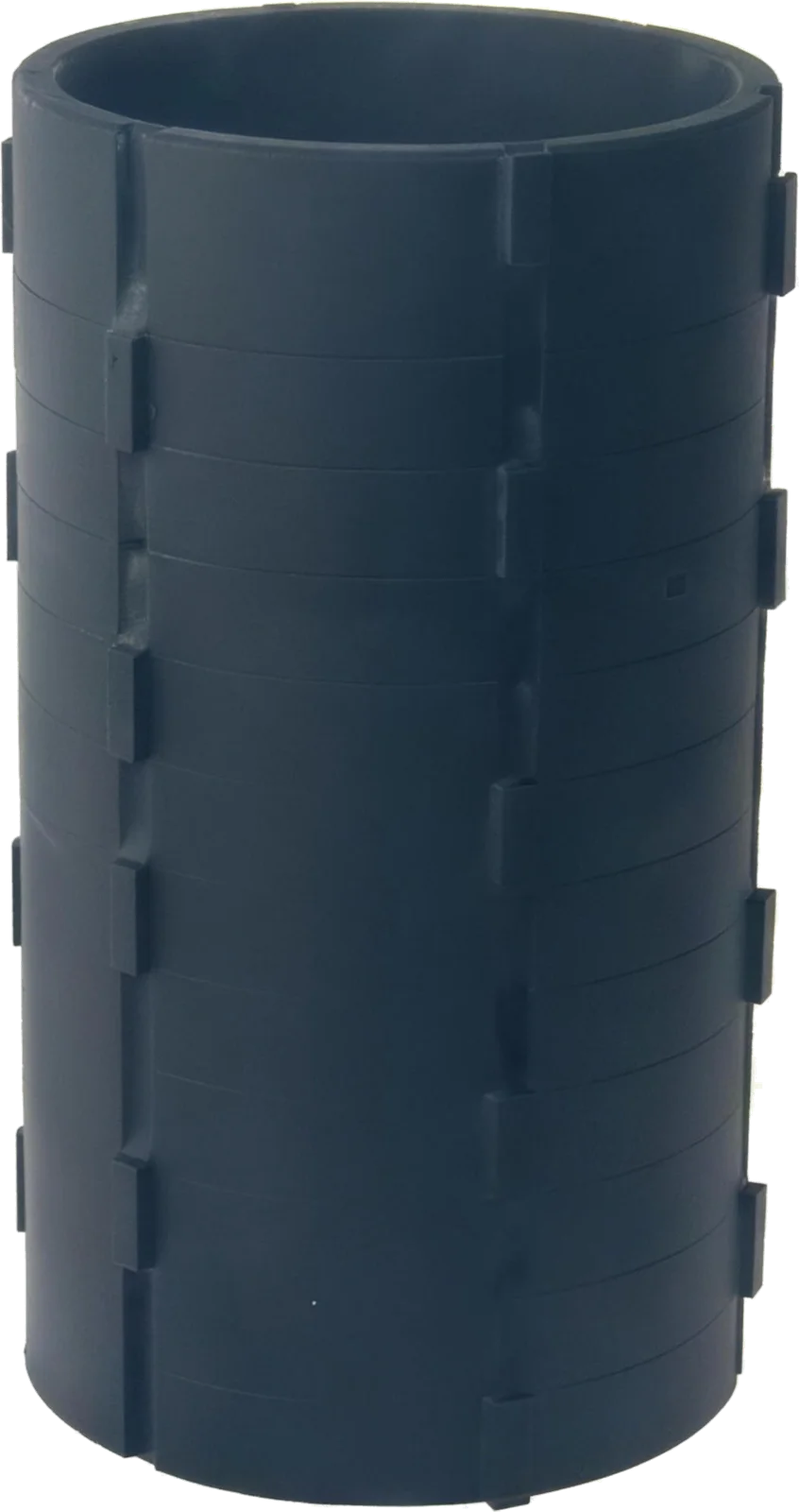

TAMB-PCD-90-L165 diamond drum
The TAMB-PCD-90-L165 diamond drum is a diamond drum designed for sanding plaster, render and resins. It is available in Ø90 mm. Fitting: clover.
Bore : CLOVER
Registered designReferences (1)
| Reference | Diameter |
|---|---|
| TAMB-PCD-90-L165 | 90 |

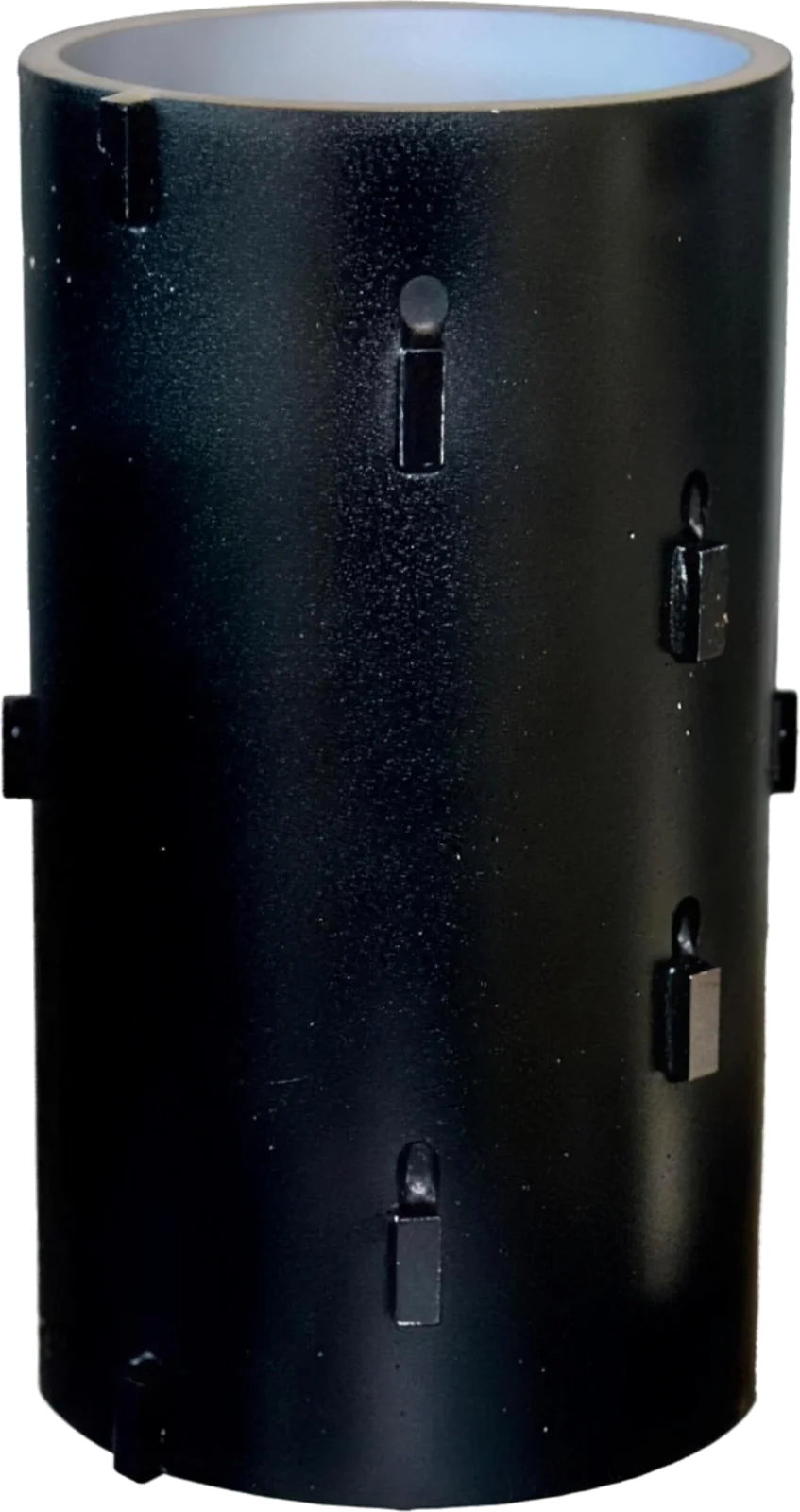

TAMB-PCD-D90-L165 diamond drum
The TAMB-PCD-D90-L165 diamond drum is a diamond drum designed for sanding concrete, reinforced concrete, resins and render. It is available in Ø90 mm. Fitting: clover.
Bore : CLOVER
Registered designReferences (1)
| Reference | Diameter |
|---|---|
| TAMB-PCD-D90-L165 | 90 |

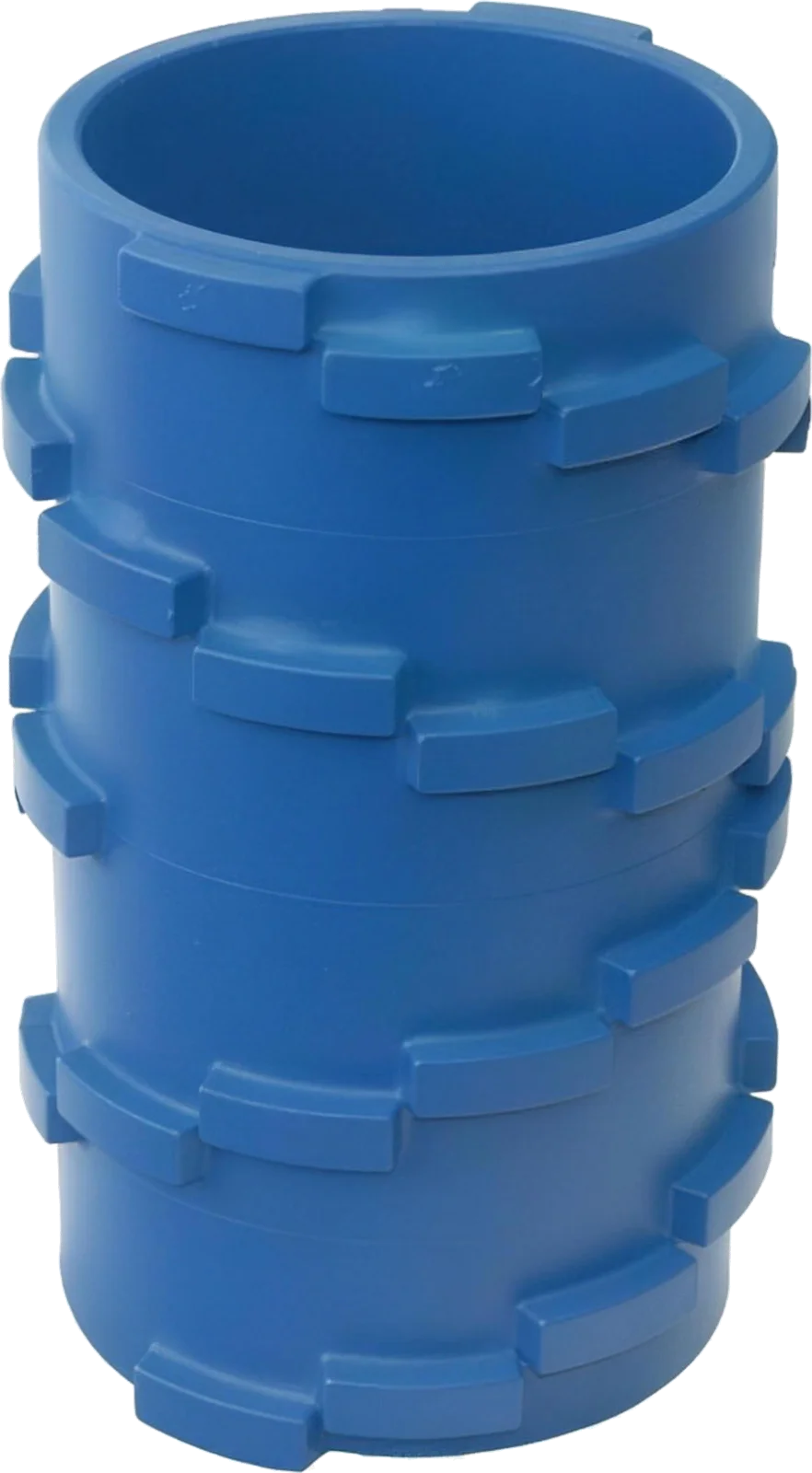

TAMB-SEG-D90-L165 diamond drum
The TAMB-SEG-D90-L165 diamond drum is a diamond drum designed for sanding paint, render and concrete. It is available in Ø90 mm. Fitting: clover.
Bore : CLOVER
Registered designReferences (1)
| Reference | Diameter |
|---|---|
| TAMB-SEG-D90-L165 | 90 |

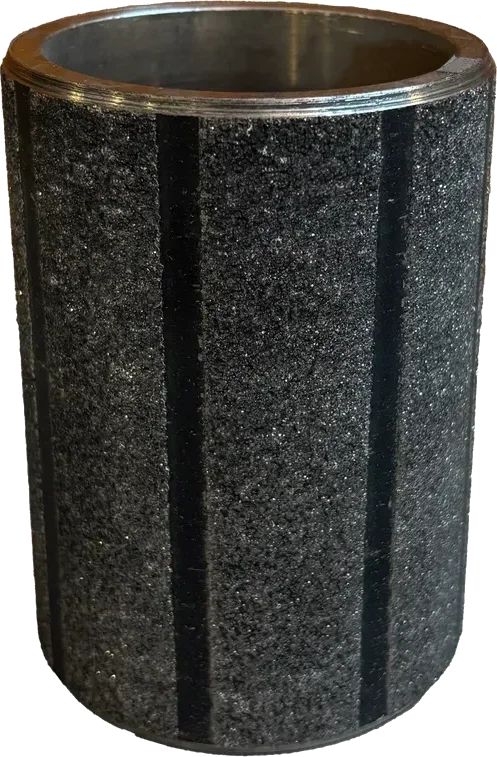

TAMB-ELE-65-L70 diamond drum
The TAMB-ELE-65-L70 diamond drum is a diamond drum designed for sanding concrete. It delivers a neat, decorative finish and is available in Ø65 mm. Fitting: clover.
Bore : CLOVER
Registered designReferences (1)
| Reference | Diameter |
|---|---|
| TAMB-ELE-65-L70 | 65 |
TAMB-PCD-65-L70 diamond drum
The TAMB-PCD-65-L70 diamond drum is a diamond drum designed for sanding concrete, reinforced concrete, resins and render. It is available in Ø65 mm. Fitting: clover.
Bore : CLOVER
Registered designReferences (1)
| Reference | Diameter |
|---|---|
| TAMB-PCD-65-L70 | 65 |
No models match your filters.
Diamond drums are chosen for deep stripping and levelling jobs where a cup wheel would be too slow, removing several millimetres of material per pass through lateral rotation rather than surface grinding. The Ø90 (165mm width) size suits larger flat surfaces on the Castor planer and on the Ceiling Planer, while the Ø65 (90mm width) size fits tighter working widths on the Ecureuil planer. Segment density and diamond concentration vary by reference to match render, resin, bituminous or glue removal.
Which machines do these consumables fit?
Every reference in this family is validated for the Sept Tools brushless machines below.
Planers: watch these machines on real job sitesSite applications
Methods, output rates and machine choice for each application covered by this family.
Complementary consumables
Families often used together on the same job site.
Frequently asked questions
Which diamond drum fits the Castor planer and the Ceiling Planer?
The Ø90 diamond drum, with a 165mm working width, mounts on the Castor brushless planer and on the Ceiling Planer. It is designed for deep stripping and levelling of renders, resins, bituminous materials and glue residue in a single pass.
Which diamond drum fits the Ecureuil planer?
The Ø65 diamond drum, with a 90mm working width, mounts on the Ecureuil brushless planer, for the same range of materials: renders, resins, bituminous materials and glue residue, in a tighter working width.
What is the difference between a diamond drum and a diamond cup wheel?
A diamond drum removes material by lateral rotation, stripping several millimetres per pass, ideal for deep levelling and thick coating removal. A diamond cup wheel works by surface grinding, better suited to finishing and lighter stock removal. Sept Tools offers 5 drum references across Ø90 and Ø65 diameters.
How do I order diamond drums given the quote-only model?
Sept Tools does not display drum prices online. Indicate the diameter (Ø90 or Ø65) matching your Castor planer, Ceiling Planer or Ecureuil planer and the material to be removed, then request a free quote; a reply with pricing and availability arrives within one working day.
The design used here is covered by registered industrial protection.
