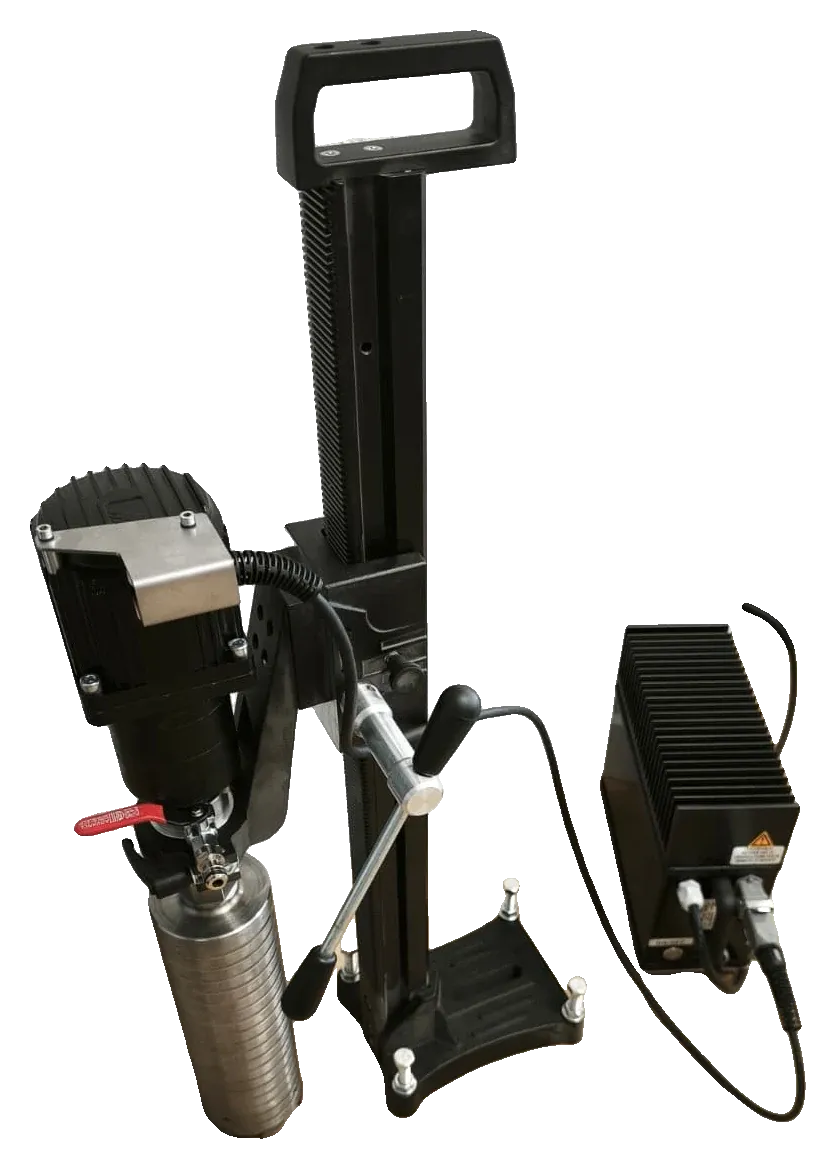

Pic Épeiche on base Drilling brushless 61 dB, 0.35 m/s², IP65
Registered designDiamond core drill on base for effortless large-diameter coring. 1:10 gearbox: 50 to 480 rpm and ten times the torque for large core bits. Separate speed controller, set away from the water, with an ON/OFF button that lights up green.
Ref. ST-PE-S
Free quote, no obligation, reply within one working day. Equipment guaranteed 24 months.
Worldwide Delivery
24-month warranty
After-sales quote within 1 to 2 working days
Technical specifications
- Power
- 1,600 W
- Plate diameter
- 200 mm
- Weight
- 17 kg
- Voltage
- 220 V
- Rotation speed
- 50 - 480 rpm
- Dimensions
- 0.72 x 0.45 x 0.95 m
- IP rating
- IP65
- Noise level
- 61 dB
- Vibrations
- 0.35 m/s²
Measured across the range: forearm vibration 56% lower in drilling and chiselling assisted by an offset arm and a balancer (Distrimo study), and 0.02 f/ml of fibres measured by a UKAS laboratory with the Fouine XB165 and the IU33 vacuum on an NHS hospital site, 5 times below the UK control limit (0.1 f/ml).
See our case studiesThe design used here is covered by registered industrial protection. Original parts are produced to controlled dimensions and stay available over time.
What does this machine work with?
Compatibility as listed in the 2025 catalogue: ergonomic carriers, configurations and required dust extraction. Each link opens the full product page.
Other configurations
See our solutions by job site
Professional concrete wall drilling
Sept Tools brushless drills for service penetrations, heavy anchors and technical fixings in concrete walls and dense masonry.
DiscoverConcrete floor drilling and industrial coring
Floor drilling and coring solutions for technical penetrations, anchors and fixings on reinforced concrete slabs.
DiscoverDiamond Core Drilling of Concrete, Dry, Without a Water Rig
For core drilling concrete, Sept Tools offers the Gazelle Foreuse or the Foreuse Périmétrique fitted with a diamond core bit for large diameters, and the Pic Épeiche with core bits from Ø4 to Ø35 mm. Cores are cut dry, with no water or slurry, and a class H vacuum captures the dust at the source, on the bit.
DiscoverSimilar products
Drilling Trolley
Professional drilling trolley for the positioning and stabilisation of drilling rigs.
Gazelle Drilling Rig
The GAZELLE DRILLING RIG is a trolley for drilling floors, walls and ceilings in a variety of materials. This trolley features a bracket to accommodate a dust extractor, providing a complete
Multi-Spindle Drill
Multi-spindle drilling rig for multiple simultaneous perforations. Significant productivity gains.
Which consumables does this drill use?
It runs the range's diamond core bits (Ø4 to Ø35 mm for the Pic Épeiche), used for coring concrete and reinforced concrete. The bit to choose depends on the hole diameter and the material.
Can drilling be done without dust?
Dry drilling pairs with a class H vacuum to capture dust at the source; some coring work is done with water. Either way, the aim is to keep airborne dust down.
How do you maintain the brushless drill?
The brushless motor has no brushes, so routine care comes down to cleaning and checking the core bit is properly fitted.
What is the delivery lead time for Pic Épeiche on base?
We confirm the dispatch lead time with your quote within 24 business hours: it depends on the model and workshop availability. Common spare parts and consumables are kept in stock in Roanne so your jobsite is not held up.
Why is the price on request?
Because a machine alone is not a workstation: the price depends on the configuration, the trolley or gantry, the extraction unit and the consumables matched to your substrate. A headline price would have you compare setups that are not comparable. Our machines do cost more to buy than an entry-level brushed machine, and we own that: the maths works over service life, not over the ticket. You are free to ask for a quote just to compare, with no sales follow-up if you do not take it further.
What warranty and after-sales come with Pic Épeiche on base?
The whole range carries a 24-month warranty, parts and labour. After-sales is handled in our Roanne workshop, with spare parts in stock and a reply within 24 business hours, no call centre.
