- Gazelle electric ceiling drill
Gazelle Drilling Rig Drilling IP65

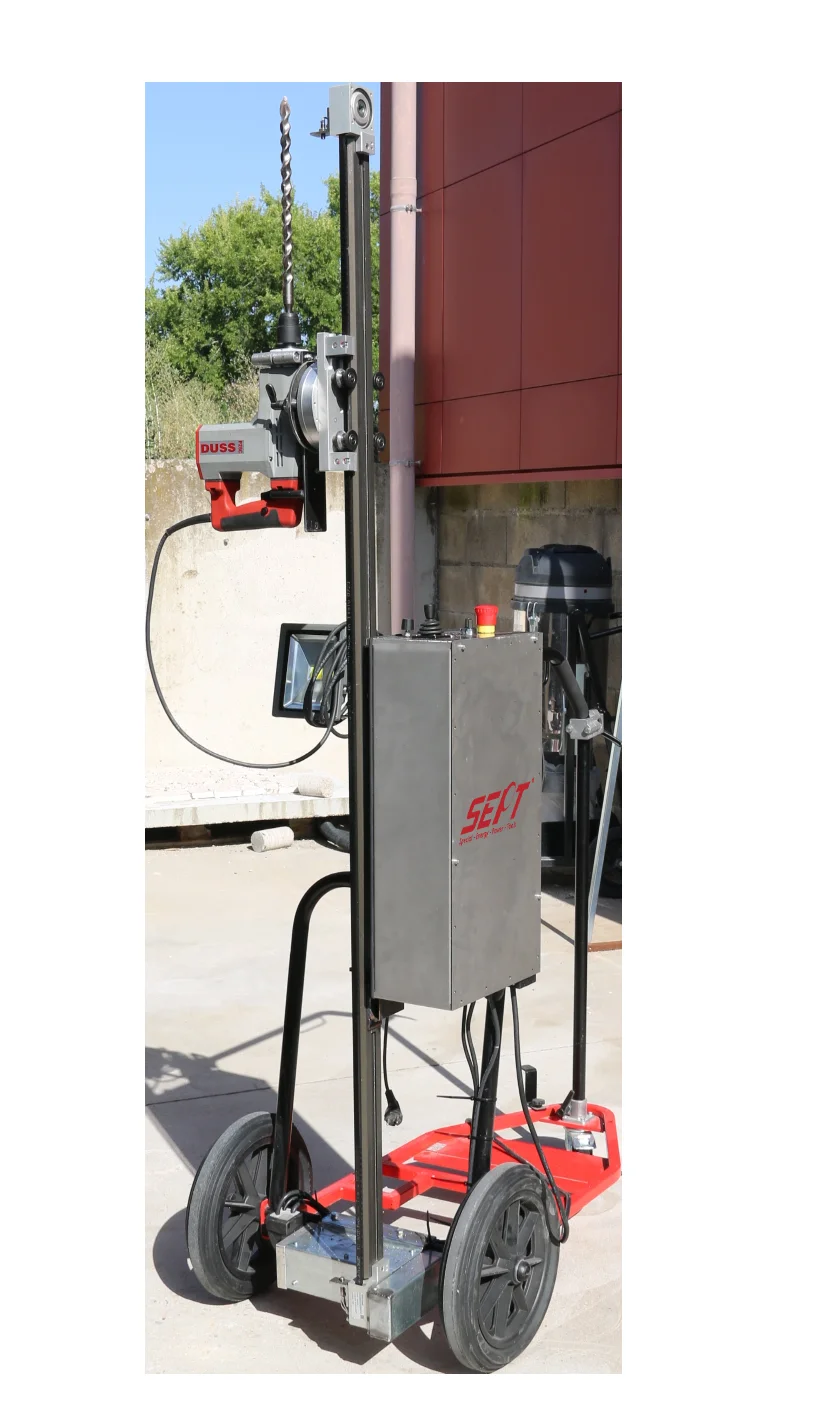

Registered designThe Gazelle drilling rig is a trolley for drilling floors, walls and ceilings in a variety of materials.
Free quote, no obligation, reply within one working day. Equipment guaranteed 24 months.
Worldwide Delivery
24-month warranty
After-sales quote within 1 to 2 working days
Technical specifications
- Weight
- 60 kg
- Voltage
- 220 V
- Dimensions
- 2.20 x 1.17 x 0.64 m
- IP rating
- IP65
The design used here is covered by registered industrial protection.
On client sites, no retakes

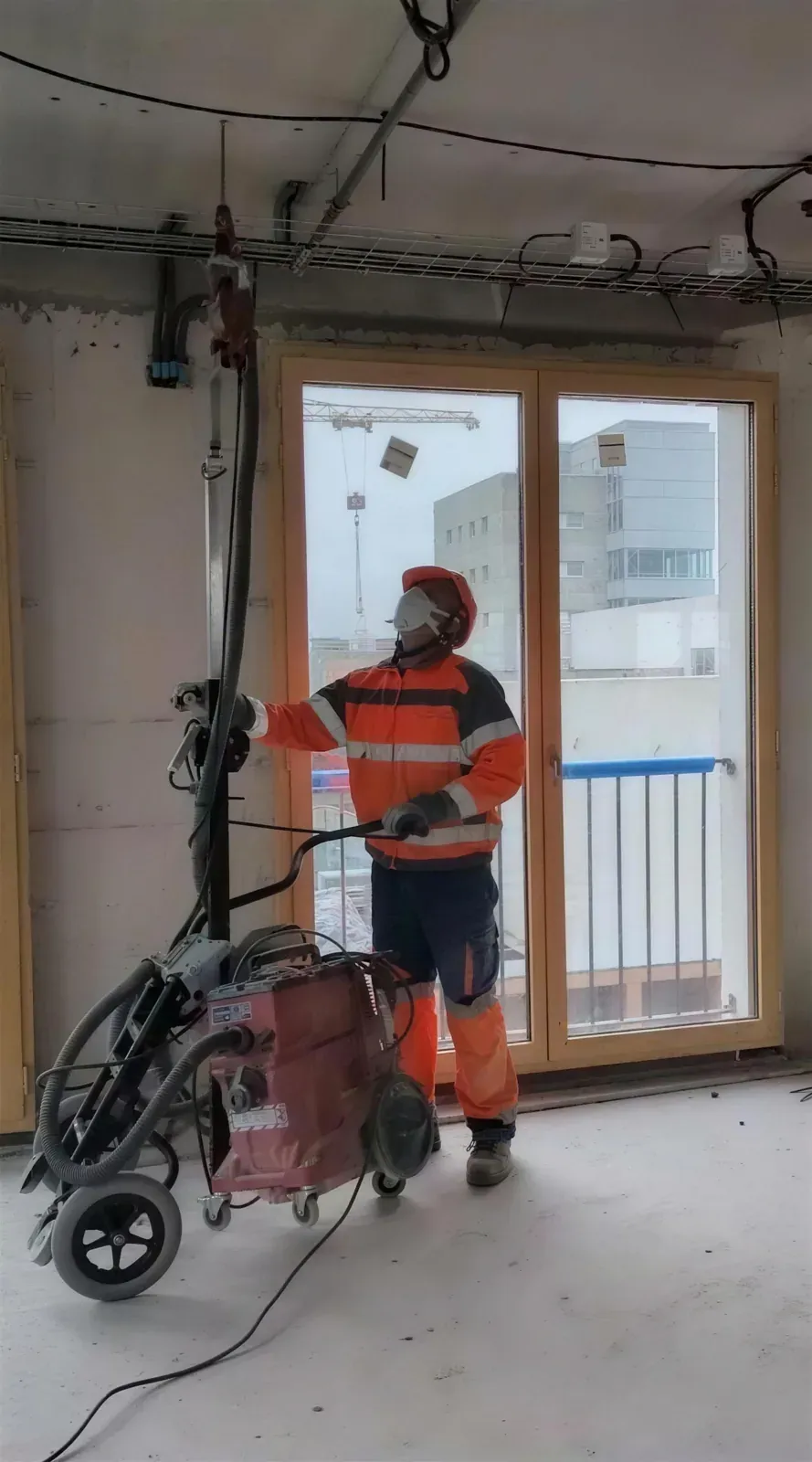

Footage shot on customer projects: floor, wall, ceiling sanding, asbestos work (French SS3 category). No staging.
overhead anchoring · reinforced concrete
Full description
The Gazelle drilling rig is a trolley for drilling floors, walls and ceilings in a variety of materials. It connects to the Turbo 7 vacuum for ordinary drilling dust; with asbestos, crystalline silica or lead, connect it to the class H IU33 Longopac vacuum.
What does the demo show?
On video: Gazelle Drilling Rig in real job-site conditions, setup, work rate and dust captured at the source.
See our solutions by job site
Professional concrete wall drilling
Sept Tools drills for service penetrations, heavy anchors and technical fixings in concrete walls and dense masonry.
DiscoverConcrete floor drilling and industrial coring
Floor drilling and coring solutions for technical penetrations, anchors and fixings on reinforced concrete slabs.
DiscoverSimilar products
Which consumables does this drill use?
It runs the range's diamond core bits (Ø4 to Ø35 mm for the Pic Épeiche), used for coring concrete and reinforced concrete. The bit to choose depends on the hole diameter and the material.
How can dust be kept down when drilling?
Dry drilling pairs with a class H vacuum to capture dust at the source; some coring work is done with water. Either way, the aim is to keep airborne dust down.
How do you maintain the drill?
Routine care comes down to cleaning and checking the core bit is properly fitted.
What is the delivery lead time for Gazelle Drilling Rig?
We confirm the dispatch lead time with your quote within one working day: it depends on the model and workshop availability.
Why is the price on request?
Because a machine alone is not a workstation: the price depends on the configuration, the trolley or gantry, the extraction unit and the consumables matched to your substrate. A headline price would have you compare setups that are not comparable. Our machines do cost more to buy than an entry-level brushed machine, and we own that: the maths works over service life, not over the ticket. You are free to ask for a quote just to compare, with no sales follow-up if you do not take it further.
What warranty and after-sales come with Gazelle Drilling Rig?
Sept Tools machines carry a 24-month warranty, parts and labour. A tool from another manufacturer supplied with a set remains covered by its own manufacturer's warranty. After-sales is handled in our Roanne workshop, with a diagnostic reply within two working days, no call centre.
Need a quote or a demo?
Our sales team will help you choose your professional tools.
Free quote, no obligation. Equipment guaranteed 24 months.
